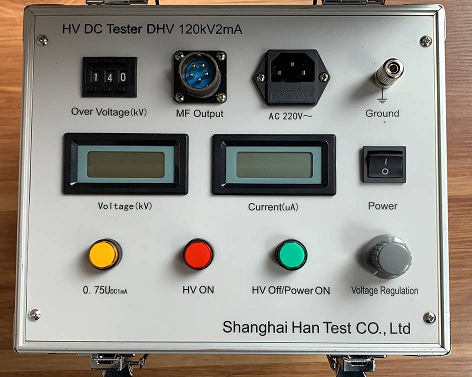

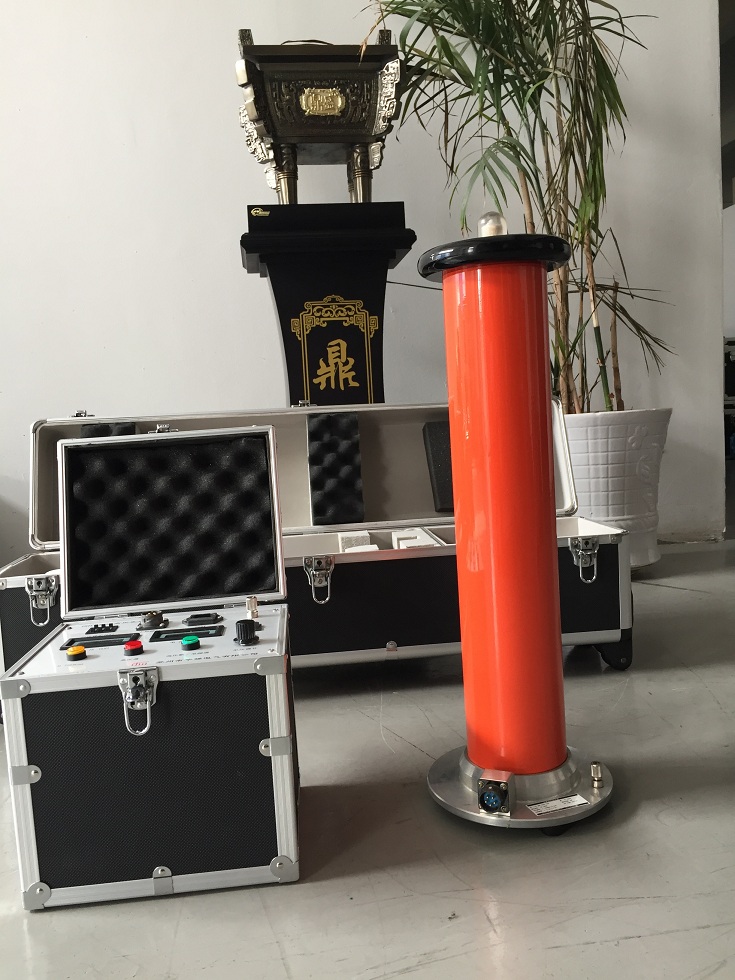

DHV series Tester is suitable to carry out HV DC test for arrester, power cable, generator, transformer, switch gear … etc in power industry and cable industry.
| spec. Item | 40/3 | 60/2 | 60/3 | 60/5 | 80/2 | 100/2 | 120/2 | 120/5 | 200/10 | 200/2 |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated voltage (kV) | 40 | 60 | 60 | 60 | 80 | 100 | 120 | 120 | 200 | 200 |
| Rated current (mA) | 3 | 2 | 3 | 5 | 2 | 2 | 2 | 5 | 10 | 2 |
| rated capacity (W) | 120 | 120 | 180 | 300 | 160 | 200 | 240 | 600 | 1200 | 400 |
Other parameters: 200kV 3mA, 200kV 5mA,250kV 3mA, 250kV5mA, 300kV2mA, 300kV 5mA, 300kV 10mA, 400kV 5mA, 400kV 20mA,500kV 5mA, 600kV 5mA
Voltage measure accuracy: reading in digital meter*1% ±2 minimum unit (0.2 kV)
Current measure accuracy:digital meter *1% ±2 minimum unit
