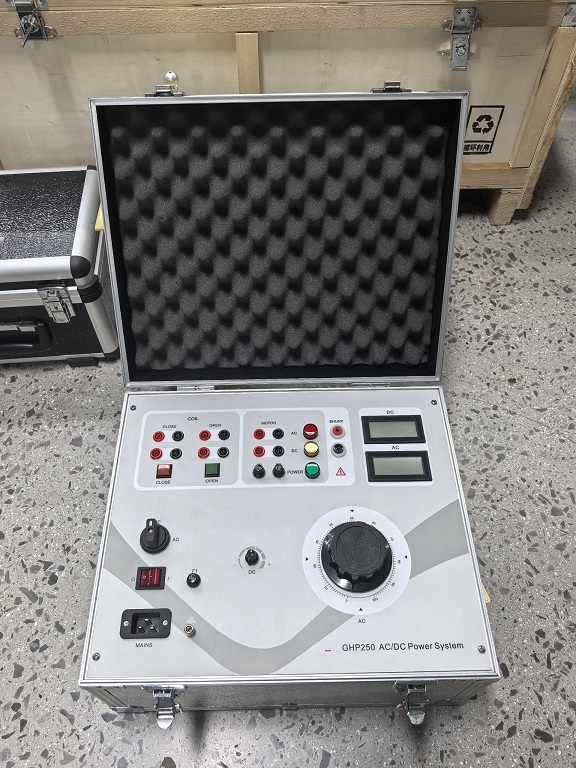

Application: The GHP250 AC/DC power supply is designed to provide operational power for vacuum circuit breakers and other high-voltage switches. It utilizes a contact voltage regulator to output 250V AC, while the DC power supply outputs 250V DC.
Technical Specification
1 Input Voltage: AC 220V ±10%, 50Hz ±1Hz
2 DC Output Voltage: 0 ~ 250V; 10A (short-time)
3 AC Output Voltage: 0 ~ 250V; 5A (short-time)
Voltage Accuracy: ≤ ±3% (10% ~ 100% of range)
Current Accuracy: ≤ ±3% (10% ~ 100% of range)
